The first step would be to design your circuit. You can use any PCB design software such as EAGLE or KiCad. I personally usually draw my circuit using Adobe Illustrator.
Next, we have to get the trace onto the copper board. The method that I am going to talk about is the toner transfer method. Basically, we will print onto a special transfer media using a laser printer and then transfer it onto the copper board by applying heat. This is a method that has been discussed quite a bit on the internet. What I am doing different is that I am using a special transfer media that will ensure that all the toner from the paper is transferred onto the copper board. This is important to get a very good trace. The transfer media is from TheMagicTouch called CPM 6.2.
You can buy the paper from 12Geeks if you are in Singapore.
If you are in Malaysia, please contact Santac Sdn. Bhd.
Below is a video demostration.
To print onto the media, it would be best to use a colour laser printer instead of a black and white laser printer. The reason is that by printing the black in colour mode, the black toner on the paper will be more dense and will ask as a better mask when doing the etching process. If your circuit is complex and your trace is very fine, it would be best to use a laser printer with postscript. However, if you are only doing a simple circuit, a non-postscript laser printer will work just fine. When printing, set the media mode to a Heavy Setting.
If you are using a heatpress machine like the one in the video, that would be the most painless way giving you the best and most consistent result. You will need to press the board at 170 degrees C for 30 secs.
If you are using a home iron, set it to the max temperature, or a cotton setting. Cover the board and paper with a cloth and then put the iron on top of the paper and then apply firm pressure for about a 1 to 2 mins. It is important that you do not move the iron. You will need a few tries to get it right. If there are small areas that you need to touch up, you can use a maker pen to make it right.
What will happen is that the printer toner will act as a mask / protection. The exposed copper will be etched away and the areas that is covered with the printer toner will be protected.
Next comes the etching process.
You will need 3 main ingredients.

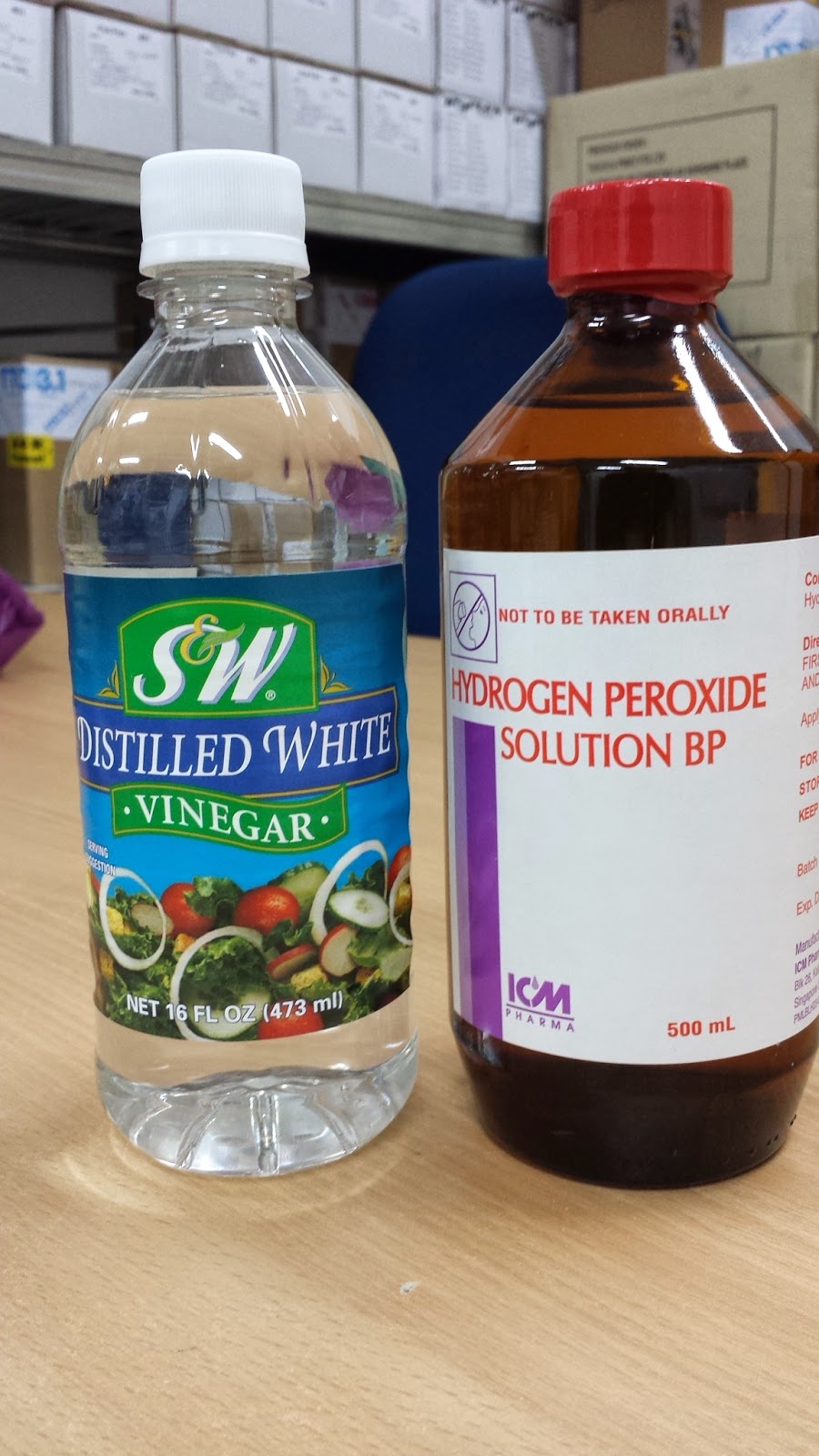

1. Vineger (You can get this at a Supermarket)
2. Table Salt (You can get this at a Supermarket)
3. Hydrogen Peroxide (You can get this at the Pharmacy)
You will also need a plastic container to do the etching in. If you are in Singapore, you can get this at Daiso.
Mix the Vineger and Hydrogen Peroxide in a 1:1 ratio. You do not need to be very accurate with the ratio. Make sure you fill up enough to submerge the whole board in. Then add in about a table spoon of salt. Use something to stir the mixture together.

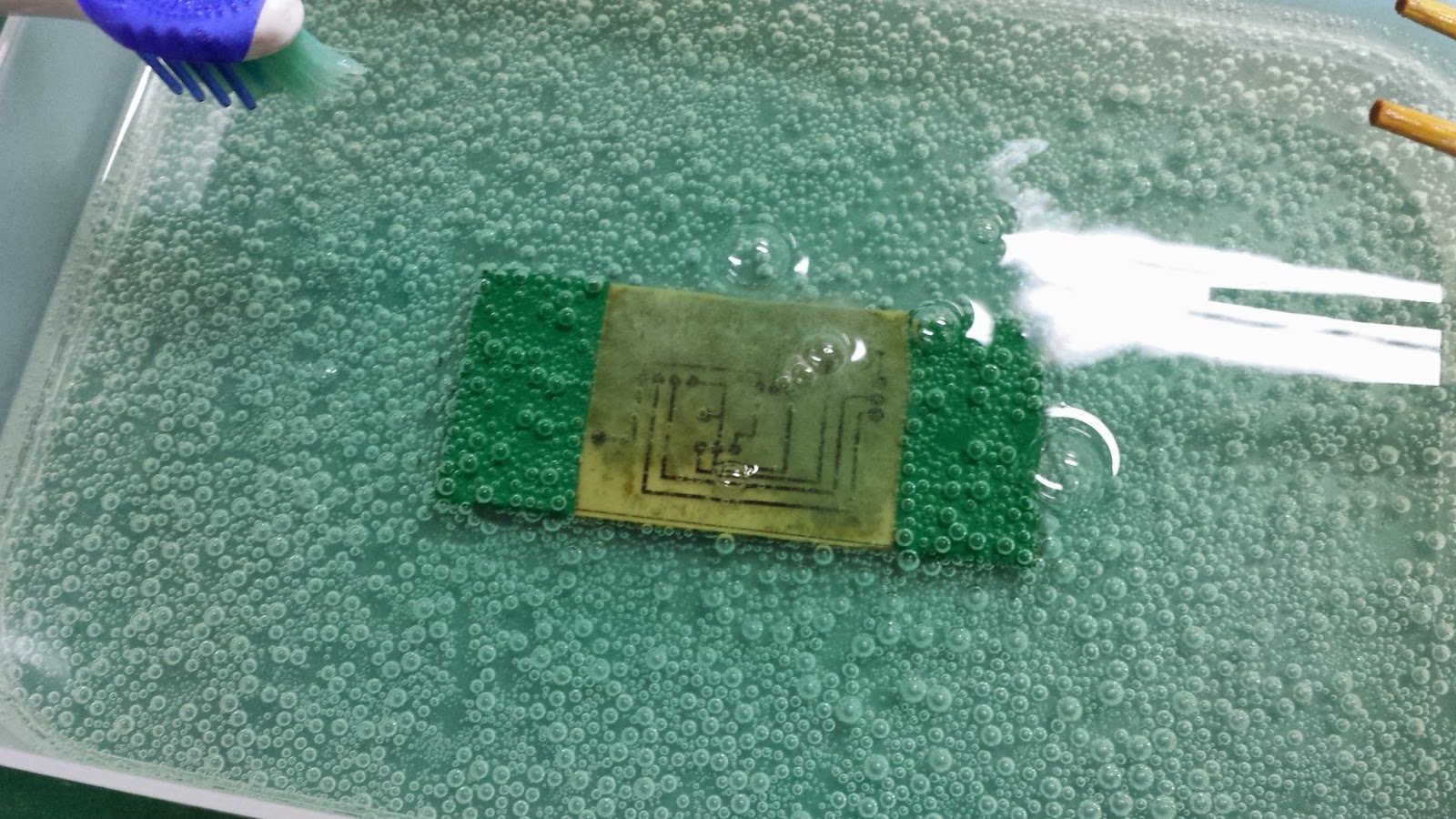

You know that it is working when the board starts to turn yellowish in colour and small bubbles starts to appear. When this starts to happen, use a old toothbrush or a sponge to gently brush away the residue on the top of the board so that the copper below will be exposed to the etching solution. You may or may not get as much bubbles as the picture below. I usually do not get so much. You will need some way to hold the board while you are brushing the board. I use a pair of wooden chopsticks.

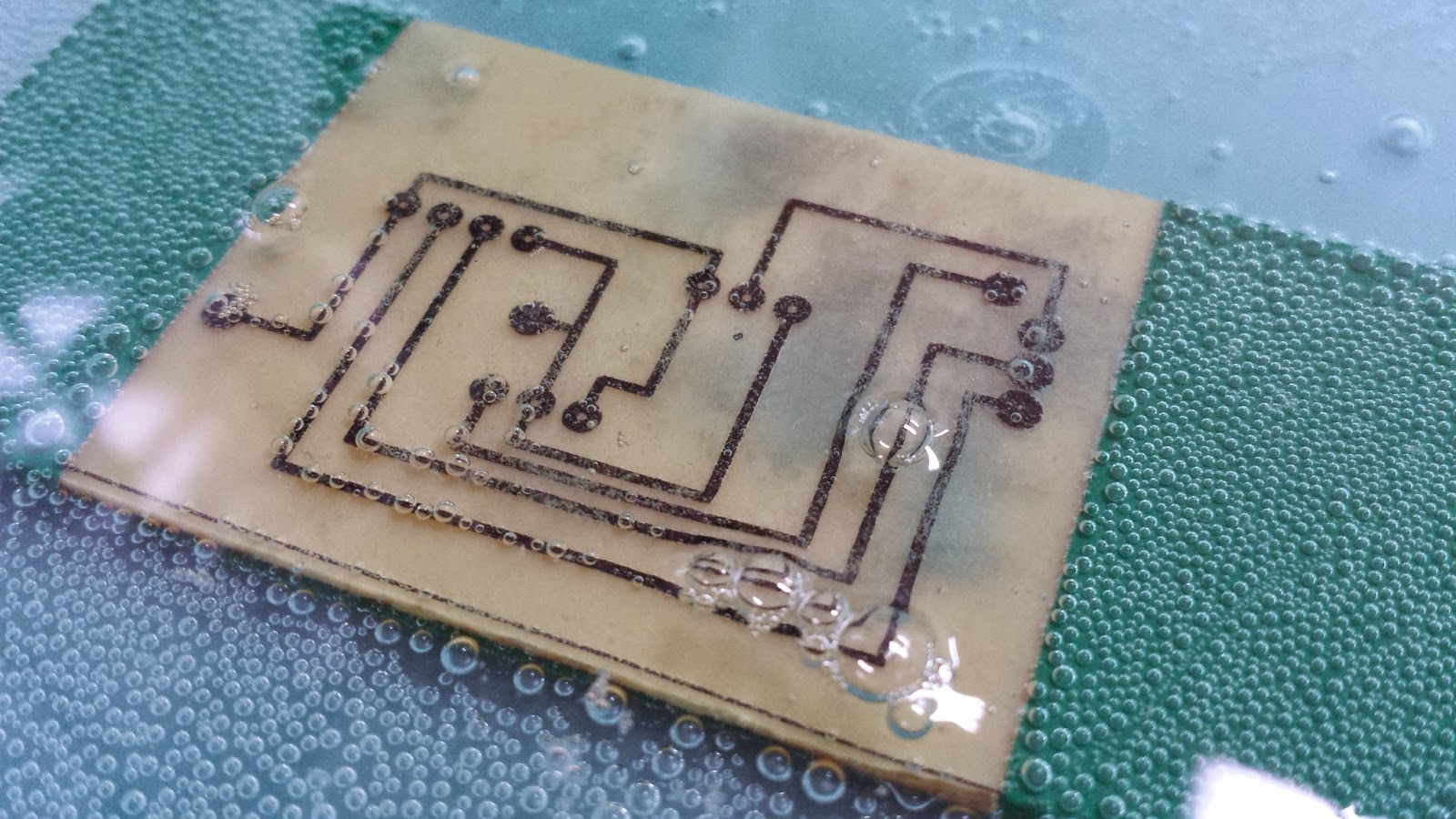

The solution will then start to turn purple. Just keep going at this for about 20mins to 30 mins.

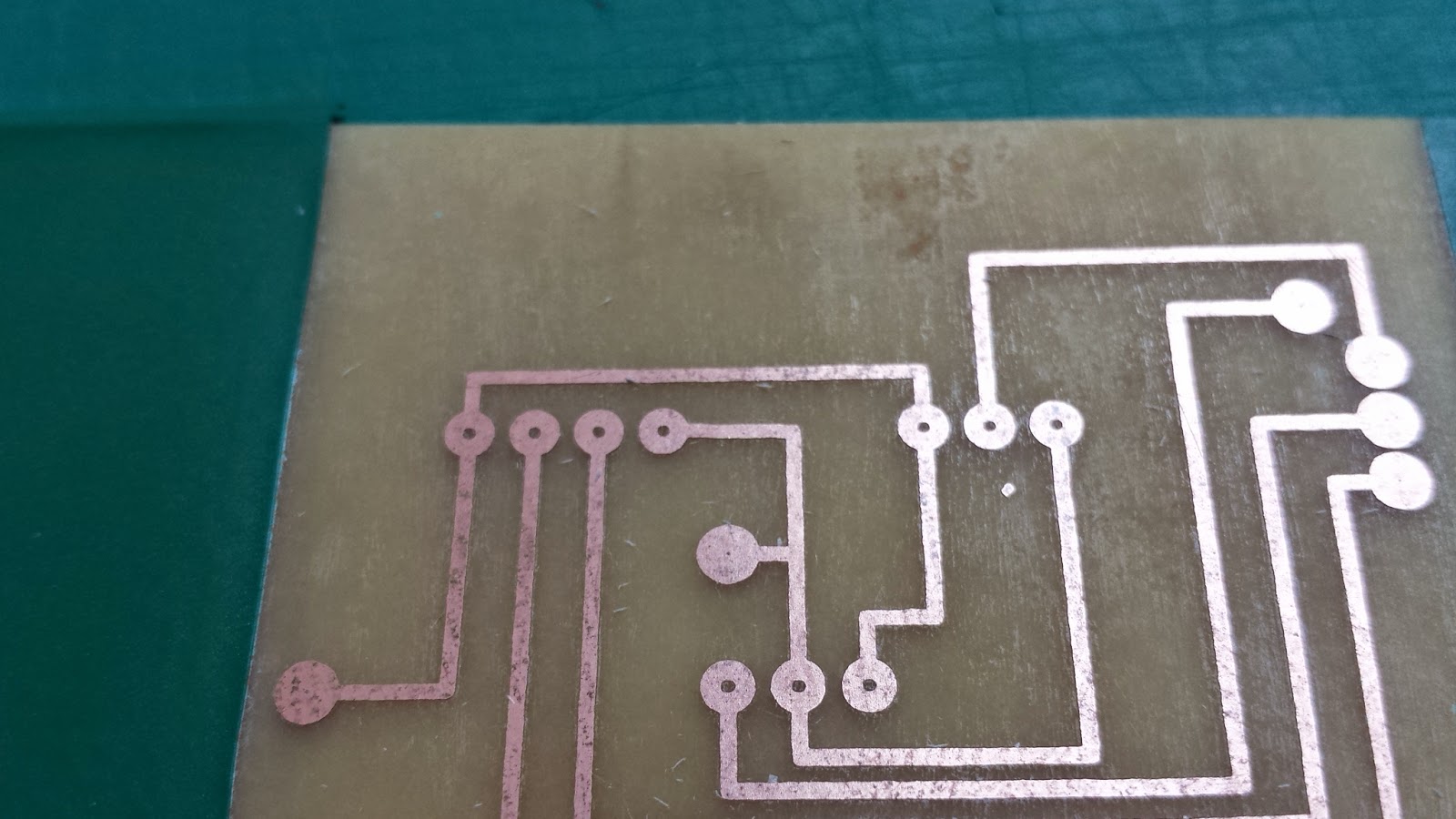

I have observed that from purple, it will then turn a light brown colour and then to light blue. Slowly, the copper will all get etched away, leaving you with just the black toner image.
To remove the printer toner, just use a solvent, or paint thinner and wipe off the toner and you have made your circuit board!!
I will try to refine this blog post more when I have more time and more pictures.
Part 2 on how to drill a PCB board is here.
